Product Details:
Payment & Shipping Terms:
|
| Goods: | Cralwer Rock Bulldozer | Operating Weight: | 38tons |
|---|---|---|---|
| Engine Model: | NTA855-C360S10 | Net Power: | 235kw |
| Rated Speed: | 2000rpm | Ground Pressure: | 0.107MPa |
| Blade Type: | Straight Tilting Blade, Angle Blade, Semi-U Blade | Blade Capacity: | 11.7 For Semi-U Blade |
| Colour: | Yellow | Warranty: | 1 Year |
| High Light: | crawler construction equipment,construction bulldozer |
||

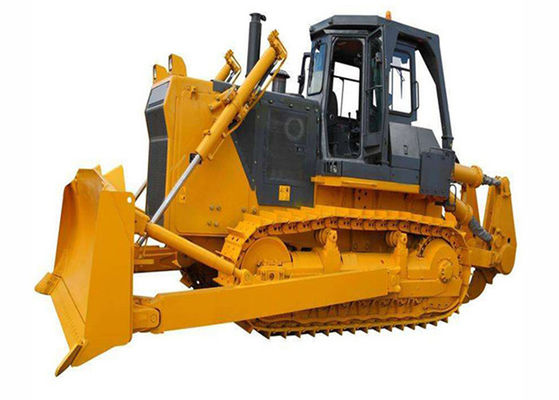

Simple introduction of SD32W Rock Bulldozer:
SD32W rock bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of severe heavy-load working conditions, such as decomposed rock and frozen earth.
Engine power/speed: 235kW/2000rpm
Operating weight of whole machine: 38000kg
SD32 Bulldozer Technical Features:
● Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available.
● The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.
● The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
● The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
● The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.
● The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
Performance parameters of SD32w standard Bulldozer
| Length × width × height (mm) (excluding ripper) | 6880×4130×3640 |
| Operating weight(t) (excluding ripper) | 37.5 |
| Engine model | NTA855-C360 |
| Net power/rated speed (kW/rpm) | 235/2000 |
| Ground pressure(Mpa) | 0.106 |
| Blade type | Straight tilting blade //Angle blade//Semi-U blade |
| Blade capacity(m3) | 10 for straight tilting blade//6.2 for angle blade //11.7 for Semi-U blade |
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Mining conditions (such as coarse sand, stone, and decomposed rock) and severe heavy-duty working conditions (such as frozen earth).
