Product Details:
Payment & Shipping Terms:
|
| Product: | Crawler Tractor Dozer | Engine Model: | WP10 |
|---|---|---|---|
| Ground Pressure: | 67.2KPa | Blade Type: | Angle, Straight Tilting ,U Blade |
| Net Power: | 170HP | Forward Speed: | 0-10Km/h |
| Blade Capacity: | 5 For U Blade | Operating Weight: | 17tons |
| High Light: | crawler construction equipment,construction bulldozer |
||

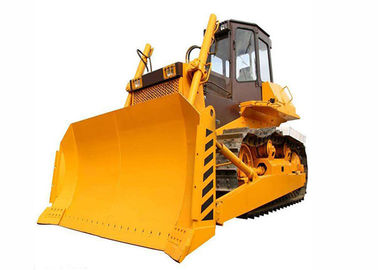

Introduction of DH17-C2 crawler dozer:
The DH17-C2 full hydraulic bulldozer brings a more comfortable control environment to the user through the comprehensive upgrade of the whole power system, driving system and control system, and the unique three-power working mode can be applied to a variety of working conditions to the user Bring more choices to achieve a reasonable match between power and energy consumption.
Technical features of crawler dozer:
● Weichai WP10 electronically controlled engine, the emission meets the national non-road machinery stage III emission requirements, intelligent and efficient, strong versatility of parts, low maintenance costs, low comprehensive fuel consumption rate.
● The whole machine is matched with the three-power working mode, which can be selected according to the actual working conditions and load requirements to achieve reasonable matching of power, efficiency and energy consumption. The unique one-key afterburning mode can be used to get rid of the extreme working conditions such as mud ponds.
● The whole machine adopts dual-circuit electronically controlled static pressure drive system, with self-adaptive load, steerable load and in-situ steering, stepless speed regulation, flexible and efficient, and excellent performance in narrow field construction.
● Walking control is electronically controlled by single handle operation, and working device is operated by pilot single handle operation, which is flexible, light and comfortable to operate.
● Suspension type single pedal structure realizes synchronous control of engine throttle and brake, small size, large foot space and comfortable operation.
● Ergonomics hexahedral integrated cab, large space, good vision, tight sealing.
● The integrated vibration damping system of the cab, the vibration noise is small, and the noise at the driver's ear can be reduced to 85 decibels;
● The adjustable range of the seat is large, providing the driver with the most comfortable manipulation posture.
● Standard rear heating and cooling air conditioner, cigarette lighter, USB charging port, radio, sunshade, fire extinguisher, etc., provide a richer user-friendly driving experience, comfortable driving environment
Performance parameters
| PRODUCT | DH17-C2 | |
| PERFORMANCE PARAMETERS | Operating Weight (kg) | 17500(Ripper not included) |
| Rated horsepower (kw/hp) | ||
| Minimum turning radius (mm) | 2390/3600 | |
| Ground pressure (kpa) | 64 | |
| ENGINE | Model | Weichai WP10 |
| Emission | ChinaⅡ | |
| Type | In-line,direct injection,water cooled,4-cycles,turbocharged | |
| No.of cylinders×Bore×stroke (mm×mm) | 6×126mm×130mm | |
| Piston displacement (L) | 9.726 | |
| Horsepower/rpm (kw/rpm) | 140/1900 | |
| Maximum torque (N.m/r/min) | 900/1400-1600 | |
| DIMENSIONS | Length (mm) | 5250 |
| Width (mm) | 3420 | |
| Height (mm) | 3080 | |
Tacking and Transportation
The HD16 crawler dozer loaded and transported by a flat truck and will be shipped by RO-RO by sea.Before loaded,the whole machine will be coated with a layer of wax to prevent rust as customer's request.
Contact Person: Ms. Vera Zuo
Tel: 86-13607649242
