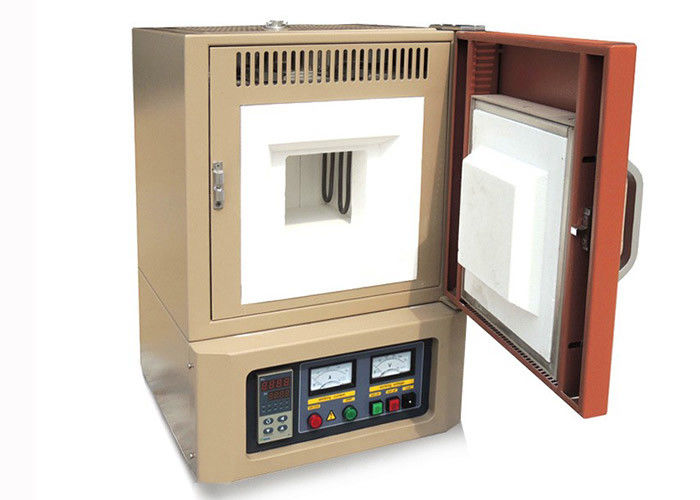

Laboratory Box 1700C Industrial Muffle Furnace Metal Melting

Laboratory Box 1700C Industrial Muffle Furnace Metal Melting
Laboratory Box 1700C Industrial Muffle Furnace Metal Melting

Large Image :  Laboratory Box 1700C Industrial Muffle Furnace Metal Melting

Product Details:
Place of Origin: China
Brand Name: CE
Certification: CE
Model Number: SP-1700B-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 300sets per month
Detailed Product Description
Max. Temperature: 1700C Operation Chamber Size: 200x200x300mm
Rated Power: 9kw Insulation Material: Light Alumina Ceramic Fiber Board
Furnace Structure: Double Shell To Make Sure Low Surface Temperature Temperature Control: 30 Segments Programmable And PID Auto Control
Heating Element: MoSi2 Rod Name: 1700C High Temperature Furnace
High Light:

1700C Industrial Muffle Furnace


Box Industrial Muffle Furnace


1700C Laboratory Muffle Furnace


              Laboratory Box Industrial Muffle Furnace 1700C Metal Melting



Industrial muffle furnace introduction :

High temperature industrial muffle furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment,ect.


The box industrial muffle furnace is provided with heat sinks through special treatment, which can ensure that the door of the furnace is not deformed for a long time, and can also quickly cool down to ensure the temperature of the furnace shell. The temperature control instrument adopts microcomputer temperature control, which has high temperature control accuracy and easy operation. The heating element adopts imported elements, which has fast heating speed and energy saving. Ceramic fiber insulation, light quality and good insulation performance. The product has no maintenance and the subsequent cost is low. The special structure of industrial muffle furnace door can protect the furnace station from deformation for a long time, and can also reduce the temperature of the furnace door. All wires of this electric furnace are well connected, no need to install. The electric furnace is composed of a furnace shell, a furnace lining, a heating element and a temperature control device. The furnace shell is assembled by welding steel plates, and the exterior is coated with high temperature paint. The lining adopts imported products from abroad, which has good thermal insulation effect and small heat loss, and also reduces the weight of the furnace body.


 Technical data of box industrial muffle furnace :

Model and name  SP-1700B-12L industrial muffle furnace
Standard Working Temperature 1600C ( continuous )
Maximum Working Temperature 1700C ( < 3 hrs)
Inside Chamber Size 200x200x300mm (12L Customizable)
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~20.C/ min (suggestion:<10.C)
Temperature Accuracy +/- 1.C
Working Voltage AC 220V Single Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element MoSi2 heating elements
Thermocouple B type
Max. Power 9KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 pc


Laboratory Box 1700C Industrial Muffle Furnace Metal Melting 0



Our industrial muffle furnaces are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.



Super company service :


·  load container at Qingdao, Tianjin, Shanghai etc.

· provide shipping method: Courier service, Air transport, Sea transport and rail transport.

· accept order: Full container cargo load, LCL and sample order

· provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc

· has complete quality control system and after-sale service
