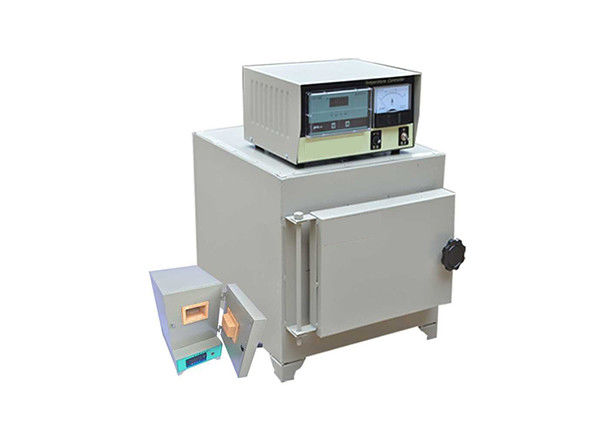

7.2L 1200C Industrial Muffle Furnace CE Refractory Preheating Oven

China Henan Super Machinery Equipment Co.,Ltd certification
China Henan Super Machinery Equipment Co.,Ltd certification
It's good cooperation with the Super Machinery , we hope keep long business.

—— David Smith

The high temperature tube furnace received, the outer packaging is very strong, and there are a lot of accessories. Thank you for your patience to explain the furnace before buying.

—— Simon Liu

I'm Online Chat Now

7.2L 1200C Industrial Muffle Furnace CE Refractory Preheating Oven

7.2L 1200C Industrial Muffle Furnace CE Refractory Preheating Oven
7.2L 1200C Industrial Muffle Furnace CE Refractory Preheating Oven

Large Image :  7.2L 1200C Industrial Muffle Furnace CE Refractory Preheating Oven

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1200B-7.2L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 400sets/month
Detailed Product Description
Name: Industrial Muffle Furnace Chamber Size: 120x200x300mm
Max. Tem.: 1200℃ Working Temperature: 1100℃
Temp. Accuracy: ±1℃ Rated Power: 3KW
Heating Rate: 15℃/min Thermocouple: K Type
Classfication: Lab Heating Quipment Voltage: 110-240V
High Light:

1200C Industrial Muffle Furnace


7.2L Industrial Muffle Furnace


7.2L laboratory muffle furnace



                        1200C Industrial Muffle Furnace Refractory Preheating Oven
Description of industrial muffle furnace:
This series of resistance furnace is discontinuous running which being used heating for ultimate analysis and measuring, quenching, annealing, tempering of general small steel parts in laboratories, r&d institutions and academies,as well as used for firing, dissolving and analysis of metal, ceramic
Technical parameter of 1200C high temperature industrial muffle furnace:

Items Specification
Product SP-1200B-7.2L chamber electric industrial muffle furnace
Useful chamber size 120*200*300mm(125L W * H* D)
Max Temp 1200℃ ( < 3 hrs)
Working Temp 0-1100℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element Resistance wire
Furnace liner Light durable ceramic fiber plate
Rated Power: 3KW
Furnace shell Double shells with fan cooling
Temp. measurement By K type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤50℃
Working Voltage AC,1-phase ,220V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc

Heat treatment industrial muffle furnace features:

* industrial muffle furnace external material: cold-rolled steel with anti-bacterial powder coating and internal material: imported high density ceramic fiber. All stainless steel glory hole,make sure the color not change.

* Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Industrial muffle furnace heating rate is about 20℃/min.

* Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.

* PID micro digital screen controller,with functions of timing(0~9999min), fixing temperature, over-temperature alarming and auto-stop.

*Indutrial muffle furnace safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.

* Double-shell hollow thermal insulation and double ventilation duct with advantages of excellent ventilation,the shell not hot and the furnace internal cool quickly.
7.2L 1200C Industrial Muffle Furnace CE Refractory Preheating Oven 0
SUPER company advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
SUPER company service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
