Refractory Brick Industrial Muffle Furnace Electric Heating 1100C

China Henan Super Machinery Equipment Co.,Ltd certification
China Henan Super Machinery Equipment Co.,Ltd certification
It's good cooperation with the Super Machinery , we hope keep long business.

—— David Smith

The high temperature tube furnace received, the outer packaging is very strong, and there are a lot of accessories. Thank you for your patience to explain the furnace before buying.

—— Simon Liu

I'm Online Chat Now

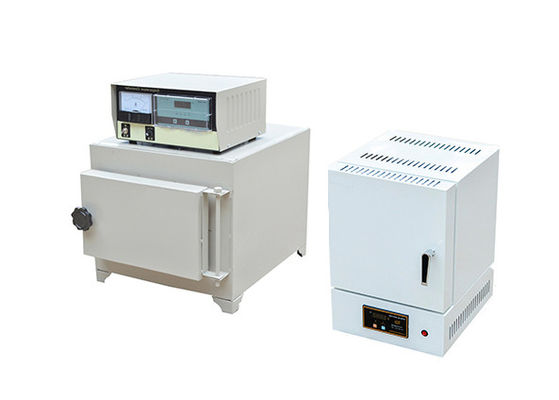

Refractory Brick Industrial Muffle Furnace Electric Heating 1100C

Refractory Brick Industrial Muffle Furnace Electric Heating 1100C
Refractory Brick Industrial Muffle Furnace Electric Heating 1100C

Large Image :  Refractory Brick Industrial Muffle Furnace Electric Heating 1100C

Product Details:

Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1200B-16L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 400sets/month
Detailed Product Description
Name: Industrial Muffle Furnace Chamber Size: 160x250x400mm
Max. Tem.: 1200℃ Working Temperature: 1100℃
Temp. Accuracy: ±1℃ Rated Power: 4KW
Heating Rate: 15℃/min Thermocouple: K Type
Classfication: Industrial Heating Furnace Voltage: 220V
High Light:

Refractory Brick Industrial Muffle Furnace

,

1100C Industrial Muffle Furnace

,

1100C electrical muffle furnace


                    Cheap Refractory Brick Industrial Muffle Furnace 1100C


Introduction of industrial muffle furnace:
Industrial muffle furnace is vailable for industrial and mining enterprises, scientific research units, such as laboratory for chemical analysis, physical testing and general small steel heat treatment.







SUPER Industrial muffle furnace advantage :

* Easy to installation.
* Electric furnace adopts domestic advanced technology
* Rectangular monolithic lining made of silicon carbide refractory material
* Made of high quality steel plate after flanging welding pull, control box with furnace body as a whole structure
* Iron chromium aluminum wire wound spiral heating element of wear on the inside lining, bottom, left and right wire slot
* Furnace is sealed structure, electric oven brick, brick oven door uses lightweight.



Technical parameter of 1200C high temperature industrial muffle furnace:

Items Specification
Product SP-1200B-16L chamber electric industrial muffle furnace
Useful chamber size 120*200*300mm(125L W * H* D)
Max Temp 1200℃ ( < 3 hrs)
Working Temp 0-1100℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element Resistance wire
Furnace liner Light durable ceramic fiber plate
Rated Power: 15KW
Furnace shell Double shells with fan cooling
Temp. measurement By K type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤60℃
Working Voltage AC,1-phase ,220V ,50/ 60HZ
Freebies 1.oven glove 1 set ; 2. Pliers 1pc



Heat treatment indutrial muffle furnace features:



* Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Industrial muffle furnace heating rate is about 20℃/min.

* Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.

* PID micro digital screen controller,with functions of timing(0~9999min), fixing temperature, over-temperature alarming and auto-stop.

*Indutrial muffle furnace safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.

* Double-shell hollow thermal insulation and double ventilation duct with advantages of excellent ventilation,the shell not hot and the furnace internal cool quickly.

Refractory Brick Industrial Muffle Furnace Electric Heating 1100C 0

SUPER company advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that

SUPER company service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
