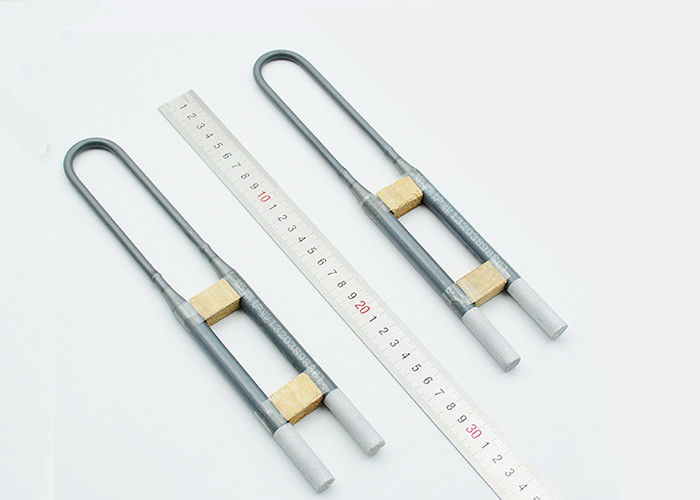

1500C High Temperature MoSi2 Heater Rod Electric Heating Element

1500C High Temperature MoSi2 Heater Rod Electric Heating Element
1500C High Temperature MoSi2 Heater Rod Electric Heating Element

Large Image :  1500C High Temperature MoSi2 Heater Rod Electric Heating Element

Product Details:
Place of Origin: Henan,China
Brand Name: SUPER
Certification: ISO 9001
Model Number: 1700 1800type
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: one week
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detailed Product Description
Product: MoSi2 Heater Rod Usage: 1600C Furnace Heating Part
Voltage: 110-240v Power Source: Electrical
Power(w): 1w-10000w Diameter: 6/12mm
Length: 100-1000mm Special Shape: Available
Density: 5.8g/cm3 Compressive Strength: 650Mpa
High Light:

1500C MoSi2 Heater Rod

,

OD 12mm MoSi2 Heater Rod

,

1500C Electric Heating Element



         1500C High Temperature MoSi2 Rod Heater Electric Heating Element



MoSi2 Rod Heater Heating Element​ introduction :

1. Mosi2 heating element is a kind of resistance heating element with high temperature resistance, oxidation resistance and low aging based on molybdenum disilicide.When used in high temperature oxidation atmosphere, a layer of bright and compact quartz (SiO2) glass film is formed on the surface, which can protect the inner layer of si-mo rod from oxidation, so the element of si-mo rod has unique high temperature oxidation resistance.



2. Under the oxidizing atmosphere, the maximum operating temperature is 1800, the resistance of the heating element of silicon molybdenum rod increases rapidly with the temperature increasing, and the resistance value is stable when the temperature is constant.Under normal conditions, the resistance of elements does not change with the service time, so the new and old elements can be mixed.



                 1500C High Temperature MoSi2 Heater Rod Electric Heating Element 0



MoSi2 Rod Heater Replacement

If there is a damaged part found in the process of operation, the first thing you should do is determine its location and get all the combination elements ready. After that, you should separate the wire the damaged element clipped to from the screw which is connected to the generatrix. Then remove the remained refractory wool and pull out the refractory stoppers. Insert the new combination elements into the furnace from its roof. Connect all the wires and get the refractory wool filled, and finally raise the temperature.



Physical property of molybdenum disilicide MoSi2 Rod Heater  heating element MoSi2 rod:

Volume Density Bending Strength Vickers Hardness Porosity Water absorption Heating Elongation Rate
5.5g/cm³ 15-25kg/cm² (HV)570kg/mm² 7.4% 1.2% 4%



Chemical Properties of MoSi2 rod heater

MoSi2 rod heater oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.



Packaging & Shipping of MoSi2 rod heater

1. From the inside to outer packaging, is foam sponge, carton, wooden case.

2.Sea or Air transportation, DHL express.

3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.



Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :

d = the diameter of hot zone ?

c = the diameter of cold zone ?

Le = the length of hot zone ?

Lu = the length of cold zone ?

a=Shank spacing

g=junction length



How many piece of MoSi2 rod heater do you need ?
