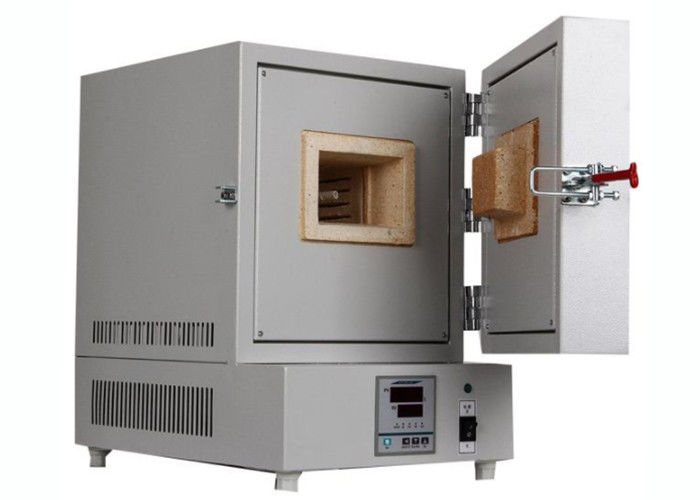

Box Ashing Oven 1200 Degree Industrial Muffle Furnace

Box Ashing Oven 1200 Degree Industrial Muffle Furnace
Box Ashing Oven 1200 Degree Industrial Muffle Furnace

Large Image :  Box Ashing Oven 1200 Degree Industrial Muffle Furnace

Product Details:
Place of Origin: China
Brand Name: Super
Certification: CE
Model Number: SP-1200B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500sets/month
Detailed Product Description
Name: Ashing Industrial Muffle Furnace Max Temperature: 1200℃
Operation Temperature: 1100℃ Insulation Material: Light Alumina Ceramic Fiber Board
Heating Element: Resistance Wire Heating Rate: 0-15℃/min
Temperature Accuracy: +/-1℃ Temp Control: 30 Segments Programmable Controller
High Light:

1200 Degree Industrial Muffle Furnace

,

Box Ashing Industrial Muffle Furnace

,

Box Ashing Oven

          Box Ashing Furnace 1200 Degree Industrial Muffle Furnace

          Box Ashing Oven 1200 Degree Industrial Muffle Furnace 0

Electric Industry muffle furnace application:



This Industry Muffle Furnaceis designed specifically to provide optimum ashing conditions to ensure complete combustion of the sample.



One of the most common applications for SUPER Ashing Furnace lab muffle furnace is to heat combustible samples in order to analyze the resulting ash residue. SUPER ashing furnace with characteristics is tailored to ashing and burn-off applications.

The max. temperature is 1200°C with working volumes of up to 36 liters. If you require an integrated afterburner to remove noxious fumes from materials such as biomass then SUPER  Furnace Afterburner Ashing Furnace could be perfect for your needs.







Fast heating Industry muffle  furnace technical data :

Model SP-1200B  fast heating ashing lab muffle furnace
Power supply AC 220V 50/60HZ
Furnace chamber 300*300*400mm(W x H x D Customizable)
Rated power 6KW
Furnace chamber 1200 type alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties.
Heating elements High quality resistance wire
Thermocouple k-type double platinum rhodium thermocouple
Temperature control mode The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program
Continuous working temperature ≤1100℃
Maximum temperature 1200℃
Max. Heating rate 20℃/min
Recommended heating rate 15℃/min
Temperature control accuracy ±1℃
Standard accessories Door brick 1 piece ;Crucible tongs 1 piece
Optional accessories Furnace hobs , a variety of corundum crucible, oven glove,computer control software and paperless recorder, etc.





Standard model of fast heating lab muffle furnace :

Model  Max. temp Chamber Size Working voltage &power
SP-1200B-1L 1200℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1KW
SP-1200B-3.4L 1200℃ 150x150x150mm(6”x6”x6”) AC,1-phase,220V,1.6KW
SP-1200B-4.5L 1200℃ 150x150x200mm(6”x6”x8”) AC,1-phase,220V.2KW
SP-1200B-8L 1200℃ 200x200x200mm(8”x8”x8”) AC,1-phase,220V,4KW
SP-1200B-12L 1200℃ 200x200x300mm(8”x8”x12”) AC,1-phase,220V,5KW
SP-1200B-18.8L 1200℃ 250x250x300mm(10”x10”x12”) AC,1-phase,220V,6KW
SP-1200B-36L 1200℃ 300x300x400mm(12”x12”x16”) AC,1-phase,220V,7.5KW
SP-1200B-49L 1200℃ 350x350x400mm(14”x14”x16”) AC,1-phase,220V,9KW
SP-1200B-64L 1200℃ 400x400x400mm(16”x16”x16”) AC,3-phase,380V,11KW
SP-1200B-125L 1200℃ 500x500x500mm(20”x20”x20”) AC,3-phase,380V,15KW
SP-1200B-216L 1200℃ 600x600x600mm(24”x24”x24”) AC,3-phase,380V,18KW



Other size is avaiable .



Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under this coverage





Packing and shipping of electric muffle furnace :



 Lab muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
