Product Details:
Payment & Shipping Terms:
|
| Name: | Atmosphere Tube Furnace | Working Temp.: | 1100℃ |
|---|---|---|---|
| Application: | Kinds Of Heat Treatment And Test | Tube Size: | OD60*300mm (length)(customizable) |
| Temp. Measuring: | B Type | Temp. Uniformtiy: | ±1℃ |
| Max. Vacuum: | -0.1MPa | Tube Material: | Quartz Tube |
| High Light: | 1100C Atmosphere Tube Furnace,Vacuum High Temperature Tube Furnace,1100C High Temperature Tube Furnace |
||

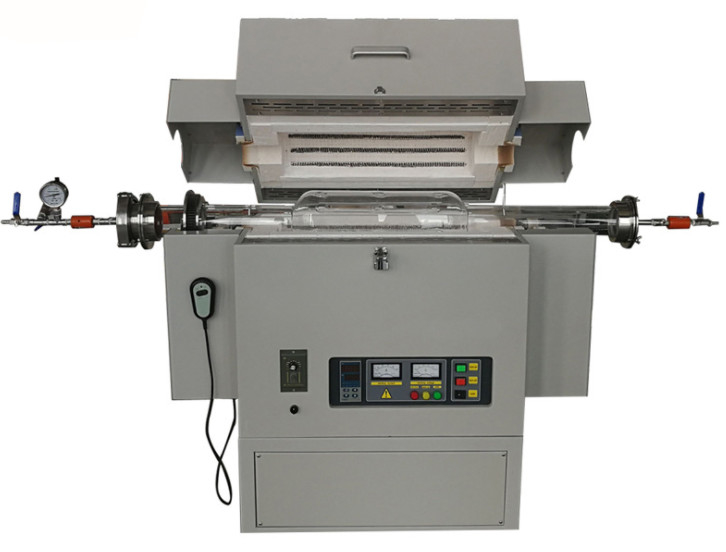

Atmosphere Tube Furnace Introduction:
Atmosphere Tube Furnace small size, high performance, very popular in labs. Can preset 15pcs temperature controlling curve, satisfy the vacuum sintering of the vast majority of materials, the sintering of the protective atmosphere and all kinds of CVD experiments, etc.
The first-class workmanship using high-quality materials, combined with ease of operation, make the small atmosphere tube furnace all-rounders in research and the laboratory.
Electric atmosphere tube furnace is a precision bench-top furnace using resistance wire as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition.It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1C and 30 segments programmable up to 1200C.
Main technical parameter of 1200C vacuum atmosphere tube furnace:
| Product name and model | SP-1200T-63 vacuum atmosphere tube furnace |
| Heating tube size(OD×L) | Dia60x300mm(2.4"*12") |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1200°C( working time < 3 hours) |
| Working temperature | 100-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | type k |
| Heating element | resistance wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
SP-1200T vacuum atmosphere tube furnace standard model:
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1200T-53 | Φ50x300 mm(2.0"x12") | AC | TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1200T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-84 | Φ80x400 mm(3.2"x16") | TW-1A;1L/S;120W;110V/220V | |
| SP-1200T-104 | Φ100x400 mm(4.0"x16") | TW-1A;1L/S;120W;110V/220V |
Delivery time :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty : One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
