| Condtion: | New | Moving Type: | Crawler Bulldozer |
|---|---|---|---|
| Engine: | Cummins | Operating Weight: | 24.6ton |
| Rated Power: | 175/1800 Kw/rpm | Lift Height Of Blade: | 1210m |
| Colour: | Yellow | LXWXH: | 6000X3725X3332 |
| High Light: | construction bulldozer,crawler construction vehicle |
||

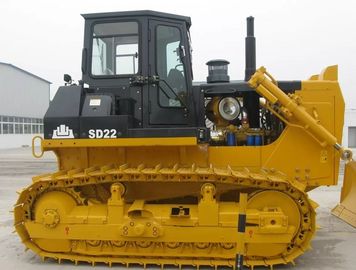

SD22 Shantui Crawler Bulldozer 220HP Earthmover for Construction

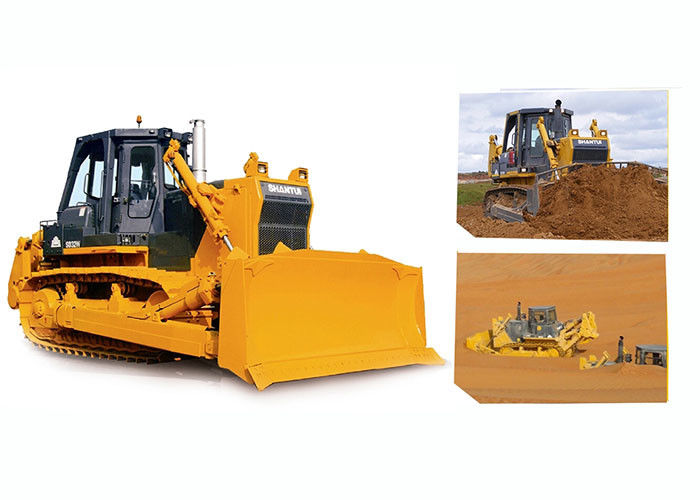

Introduction of SD22 bulldozer
SD22 series bulldozer adopts Shantui’s patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China’s bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earth-moving operations and bulk material handling.
The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.
It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.
The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bendingmoment and the high quality welds guarantee the life cycle of the main frame.
The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.
The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.
The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
Technical parameter of SD22 Bulldozer
| ITEM | UNIT | SD22 |
| L×W×H (Ripper not included) | mm | 5750×3725×3395 |
| Operating weight (Ripper not included) | t | 23.4 |
| Engine | - | NT855-C280S10 |
| Rated power | kW/rpm | 162/1800 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U-blade |
| Semi-U blade Angle blade | ||
| Blade width | mm | Straight tilt blade 3725×1315 |
| U blade 3800×1343 | ||
| Semi-U blade 3725×1374 | ||
| Angle blade 4365×1055 | ||
| Dozing capacity | m3 | Straight tilt blade 6.4 |
| U blade 7.5 | ||
| Semi-U blade 7.0 | ||
| Angle blade 4.7 | ||
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1210 |
| Ripper type | Single ripper Three-shank ripper | |
| Ripping depth of ripper | mm | Single ripper 695 |
| Three-shank ripper 666 | ||
| Lifting height of ripper | mm | Single ripper515 |
| Three-shank ripper 555 | ||
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 38 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2000 |
| Ground length and ground pressure | mm/MPa | 2730-0.077 |
| Pitch | mm | 216 |
| Forward speed | km/h | 0–3.6 |
| 0–6.5 | ||
| 0–11.2 | ||
| Reverse speed | km/h | 0–4.3 |
| 0–7.7 | ||
| 0–13.2 |
1. Pre-Sales Service
Professional sales team supplys personal service according to customer's requirement.
2. Order operation
We will start to deal your order within 3 days with strict quality control.
3. Shipment
According to different shipping requirements,our company logistics department will ship the Shantui bulldozer SD22 to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.
shantui sd16 sd16f sd22f swamp bulldozer types of bulldozer
4. After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
More questions and answers
1. How long will take to delivery the goods after placing an order?
It will take about 7 days after getting the deposit if we have machine in stock. Some customized goods will need about 30 days to delivery.
2. If our machines have any problems, When will your side can reply to us?
We will solve your problems immediately once get your message. Usually it will take 1~2 hours to give you the solution or explanation.
3. What kind of good policy your can supply if we want to be your distributor?
Special discount and protection of sales area can be provided to your distributor.
