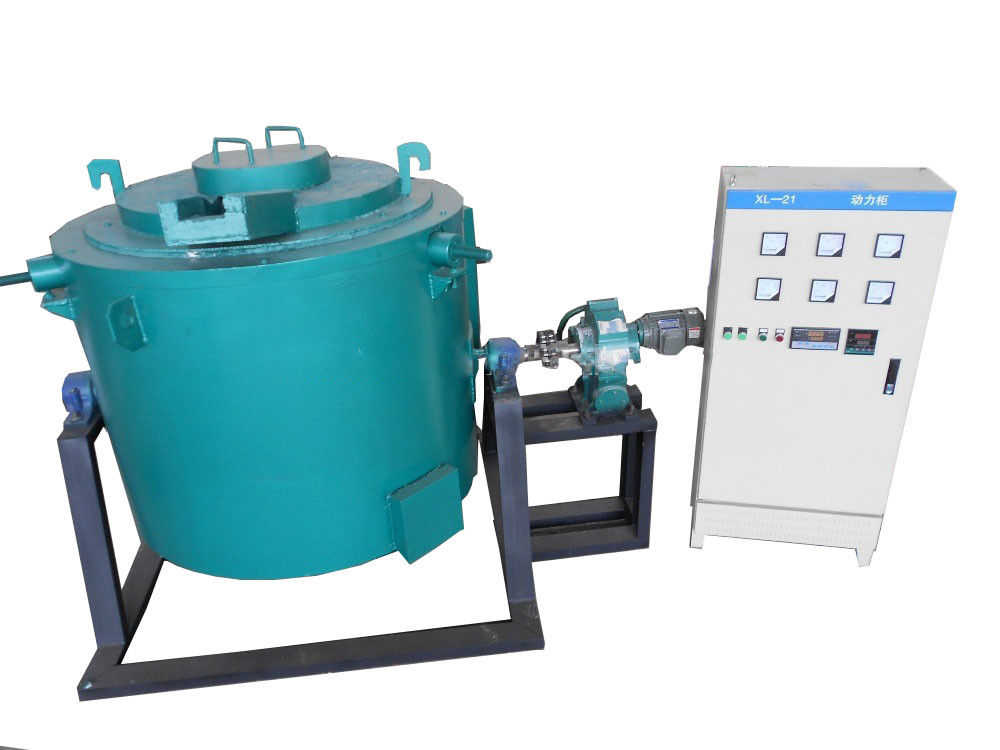

Graphite Crucible Melting Furnace , Tiltable Copper Brass Aluminum Melting Furnace

Graphite Crucible Melting Furnace , Tiltable Copper Brass Aluminum Melting Furnace
Graphite Crucible Melting Furnace , Tiltable Copper Brass Aluminum Melting Furnace

Large Image :  Graphite Crucible Melting Furnace , Tiltable Copper Brass Aluminum Melting Furnace

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: GR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets/month
Detailed Product Description
Goods: Copper Brass Aluminum Melting Furnace Application: Aluminum Copper Melting
Rated Temperature: 800℃ Working Zone Size: Customizable
Pipe Material: Stainless Steel Tilting System: By Reduction Gear
Capacity: 50-500kg Aluminum Voltage: 380V
Melting Time: 60mins/batch Warranty: 1 Year
High Light:

electric metal melting furnace

,

electric crucible furnace

    Tiltable Copper Brass Aluminum Melting Electric Furnace Graphite Crucible

Electric furnace function :

1. The furnace structure has the furnace shell, lining, furnace cover, furnace tank (graphite crucible or cast steel crucible), heating components, temperature control system.
2. The lining is made of ultra-lightweight high-alumina refractory brick as a furnace chamber. Insulation layer with aluminum silicate refractory fiber attached, filled with diatomaceous earth (or vermiculite powder) material. Good in the insulation performance.
3. Intelligent digital display works. It has functions of setting temperature, correction, digital display, control, over-temperature alarm device and the over-temperature sound and light alarm. It makes sure the accuracy and stability of the control system.
4. Can be designed for the tilt, there are manual tilt and electric tilt two models.

5.The heating element is made of 0Cr25Al5 alloy wire, spirally wound, placed on the wire brick around the furnace, and fixed with a custom socket to prevent falling off.

6.The furnace cover is also welded by steel and has a long service life. The lining of the furnace cover is made of aluminum silicate refractory fiber for heat insulation and heat preservation, which can improve the heat preservation performance of the furnace cover, prevent heat dissipation, and reduce the weight of the furnace cover





Aluminum melting furnace structure technical parameter :

Loading capacity in theory 50-400kg aluminum per batch
Effective availability 80%
Loading capacity 100-300kg aluminum per batch
Inner chamber size customizable
Rated power depends on chamber size
Rated voltage 3 phase 380V 50HZ
Rated temperature 800℃
Furnace shell Made of 10mm structure steel
Furnace lining Super light and energy saving refractory brick and insulation brick
Furnace crucible graphite crucible (supply)
Tilting system By reduction gear
Furnace lid Yes
Heating element Resistance wire
Power control cabinet Supply
No-load heating time to max temp. from room temperature Less than 2.5 hours



Technical support and after sale service :

1.Prompt technical consultation and support will be offered .

2.Provide consumable parts with favorable price

3.A whole year warranty and lifetime maintenance .



Standard models of resistance crucible furnace for aluminum melting :

aluminum melting resistance crucible furnace
Product model crucible size loading capacity (AL) rated power rated temperature
GR-20-8 Φ300x430mm 50-100kg 20kw 800°C
GR-60-8 Φ500x600mm 100-250kg 60kw 800°C
GR-75-8 Φ500x870mm 250-400kg 75kw 800°C

We are also able to produce this melting furnace according to customers' requirement .



Packing and delivery :

²The furnace is nude packed but duly fixed inside the container.

²The nearest sea port is Shanghai port which is the largest and most convenient port over China.

²The delivery time is 45-120 days after receipt of down payment.

²The furnace is usually loaded into normal containers (20GP or 40GP) or flat racks.

²Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.



Furnace Chamber

Graphite Crucible Melting Furnace , Tiltable Copper Brass Aluminum Melting Furnace 0
