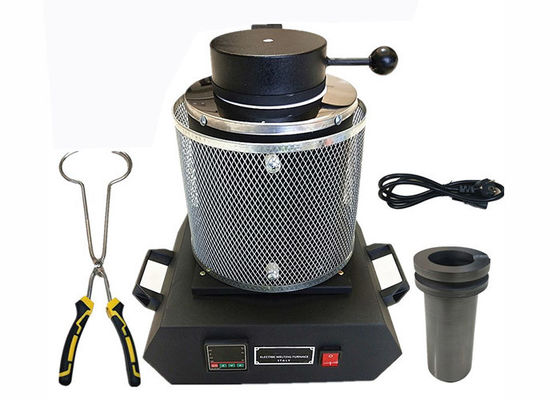

Lightweight Portable Gold Melting Furnace Customized Plug With PID Controller

Lightweight Portable Gold Melting Furnace Customized Plug With PID Controller
Lightweight Portable Gold Melting Furnace Customized Plug With PID Controller Lightweight Portable Gold Melting Furnace Customized Plug With PID Controller

Large Image :  Lightweight Portable Gold Melting Furnace Customized Plug With PID Controller

Product Details:

Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: 1-3kg

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard carton cast or plywood case
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500sets/month
Detailed Product Description
Goods Name: Portable Metal Melting Stove Temperature Control: PID Controller
Capacity: 1-3kg Gold Crucible: High Purity Graphite Crucible
Rated Temperature: 1150C Plug: Customized
Insulation Material: Quartz Fiber Shipping Weight: 13kg
High Light:

gold induction furnace

,

gold melting equipment

           Lightweight Portable Metal Melting Stove Gold Resistance Furnace



1. Applications of gold melting furnace :

This small gold melting furnace is specially designed for various gold shops and jewelry shops. Its small size, light weight, and very convenient operation. It is mainly melted with a small amount of gold and silver. The furnace is equipped with a high-purity graphite crucible, which does not pollute the raw materials during melting and will not stick to the pot. Because of its easy operation and low price, it is the primary choice for all types of gold shop owners.





2. Instruction and features:

Fast speed of melting, saving energy, less burnt loss, pure molten liquid.

furnace apply SSR controller, alloy made heater with melting temp up to 1200°C, high temp proof ceramic melting chamber , high aluminium protection and other advanced, top quality components to improved it's durability and

working efficiency over current markets furnaces.



Thanks to the use of a heat-resistant and efficient insulation, the radially arranged heating element can give full effect and a homogeneous temperature distribution results in the melting crucible. The high performance and the good insulation ensure a rapid reaching of the desired melting temperature.

In addition to housing insulation, a thermally insulated grid protects against accidental contact with the heating chamber. This is an important safety feature when dealing with the melting furnaces. To match the melting crucible, we supply a melting tongs that fit into the groove around the crucible head. This allows you to work safely with the hot melt crucible.





3. Technical data :



Capacity 1kg 2kg 3kg
Power input( (w) 1500 1600 1700
Power supply(220v) 50,60hz/7A 50,60hz/7.5A 50,60hz/8A
Power supply(110v) 50,60Hz/14A 50,60Hz/15A 50,60Hz/16A
Measurement accuracy + 0.5%FS + 0.5%FS + 0.5%FS
Working environment 0-50°C, 30-85%RH 0-50°C, 30-85%RH 0-50°C, 30-85%RH
Net size(cm) L31xW36xH37 L31xW36xH37 L31xW36xH37
Packing size(cm) L38xL38xH42 L38xL38xH42 L38xL38xH42
Net weight(kg) 11 11 11
Packing weight(kg) 13 13 13





4. package of small gold smelter:

  Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.



5. Delivery time

 ♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

 ♥ Other customized sizes the delivery time is from 7 days to 15 days according to different products request.



6. Our Warranty :



(1) control circuit 1 year ;

(2) furnace pipe 6 months;

(3) heating elements: for pure gold and silver warranty for 3 months ;if for corrosive material ,no warranty.



NOTICE
The following vulnerable parts without warranty:
Furnace, Furnace wire, Graphite crucible, Thermoprobe.

NOTE:

1. The melting furnaces are expressly only suitable for the processing of precious metals such as gold, silver and copper. Any other use of these melting furnaces can lead to damage!
2. To make the machine more durable, it is recommended that the machine should not work for more than 3 hours, such as work for more than 3 hours, please stop about 1 hour and then continue to work.
3. Please pay attention to check the crucible at any time, and at any time to replace, to avoid the rupture of the crucible and damage the furnace situation.
