Heat Treatment Tiltable Gas Carburizing Furnace Low Carbon Steel

Heat Treatment Tiltable Gas Carburizing Furnace Low Carbon Steel
Heat Treatment Tiltable Gas Carburizing Furnace Low Carbon Steel

Large Image :  Heat Treatment Tiltable Gas Carburizing Furnace Low Carbon Steel

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: ISO
Model Number: RG-45-9
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: by container
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detailed Product Description
Name: Rotary Carburizing Furnace Voltage: AC,3-phase,380-465V
Type: Heat Treatment Furnace Rated Temperature: 950℃
Temp Uniformity: ±5℃ Application: Steel Balls Bushins Pins Quenching
Load Capacity: 100kg Rated Power: 45kw
High Light:

Tiltable Gas Carburizing Furnace


Carbon Steel Gas Carburizing Furnace


Tiltable gas carburising furnace

                                Heat Treatment Tiltable Carburizing Furnace Low Carbon Steel

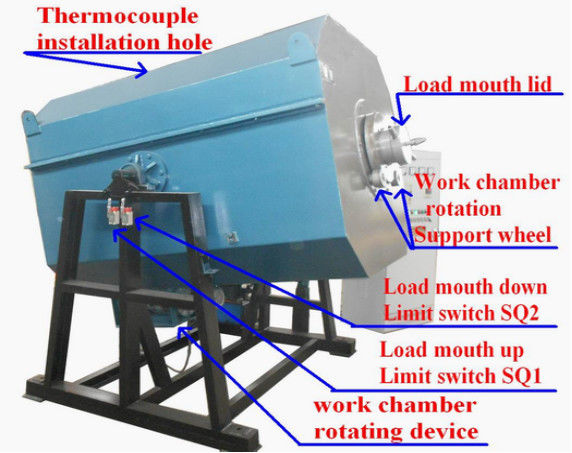

Tilting rotary resistance carburizing furnace Structure:
Furnace body: composed by the body, bracket, bearing seat. The body consists of furnace shell, lining and furnace tank. In order to facilitate the installation and maintenance of the furnace tank, both ends are bolted. The refractory layer of the lining is made of ultra-lightweight refractory brick masonry. The insulation layer is made of aluminum silicate refractory fiber and expanded perlite block. The heating element is made of spiraled resistance wire and fixed on the bricks. Furnace tank material can be cast steel and welded steel. Welded with thick heat-resistant steel plate. There are two anti-mixed bar. The front end of the furnace tank is supported by a roller, and the rear end is supported by a fixed bearing. The furnace is free to expansion and shrink due to temperature changes. Gas and liquid media are injected from the rear of the infusion device, the exhaust from the front door discharge and burning, the workpiece is loaded and unloaded from the door.
Rotary and tilting device: composed by motor, gearbox, big & small sprocket, chain. The tilting angle is adjustable.
Drip and gas supply system: organic liquid and ammonia and other media, respectively, injected from the top of the two pipe fittings nozzle. Measured by observing the amount of liquid droplets, ammonia and other gas flow through.

Control system: using a high-power SCR PLD zero-crossing trigger system, with a radiator and a full set of air-cooled system. At the same time equipped with automatic air switch and fastener for secondary protection. Each group of electric resistance elements is set a ammeter, voltmeter and electric components on and off instructions, with power interlock protection and safe grounding measures to ensure the use of safety.

Rotary Carburizing Furnace Features:
1. This furnace is heated by resistance,controlled by solid state relay and intelligent instrument of Japan conductive company,and using PID adjusting method,has the advantages of accurate temperature control,simple operation,stable performance.
2. Working zone uses sealed cylinder-shaped chamber furnace made of imported high temperature stainless steel,it rotates automatically after the workpieces are putting into the furnace chamber to make the workpieces be heated uniformly.It can also be passed into various gas to meet various technological requirements of workpieces.


Technical parameters of  Tiltable Roller Retort Carburizing Furnace

1. Working power supply AC/3-phase 4-wire/380-440V/50/60Hz
2. Rated power 45Kw
3. Rated temperature 950°C
4. Temperature control way PID power regulation,instrument of Japan conductive company
5. Temperature accuracy ±1°C
6. Temperature uniformity ±5°C
7. Heating element 0Cr25Al5Fe+Cr resistance wire,spiral
8. Heating element connection Y
9. Dimensions of Effective work zone Diameter * length=300*620mm
10. load capacity of 1 batch 100Kg
11. Operating motor of Furnace chamber 1 set ,1.5Kw,adjust speed by magnetic
12. Rotating speed 0.5-8 r/min
13. Tilting motor of furnace body 0.55KW Hand/electric (all in one) speed reduction unit
14. Max Tilting Angle of furnace body +/-50 degree
15. No-load power loss Less than 4KW
16. No-load heating time(Normal Temp:950°C) About 2.5 hours
17. Shape dimension 2100*2200*2100mm
18. Net weight 2.6 Tons/set



standard model of SUPER carburizing furnace:

Model Furnace chamber size Rated power Rated temperature Phase Rated voltage
RG-30-9 D300×L620 mm 30 kw 950 degree celcius 3 380-440V
RG-45-9 D520×L680 mm 45 kw 950 degree celcius 3 380-440V
RG-60-9 D600×L750 mm 60 kw 950 degree celcius 3 380-440V
RG-120-9 D750×L1000 mm 120 kw 950 degree celcius 3 380-440V
