Payment & Shipping Terms:
|Product:||Electric Ceramic Furnace||Max. Temp:||1700℃|
|Operation Temperature:||1600℃||Rated Power:||8kw|
|Chamber Size:||200x200x300mm||Voltage:||AC 220V± 10V 50Hz/60HZ|
|Type:||Resistance Furnace||Heating Rate:||Max 20℃/min|
|Heating Element:||MoSi2 Heating Element||Warranty:||1 Year|

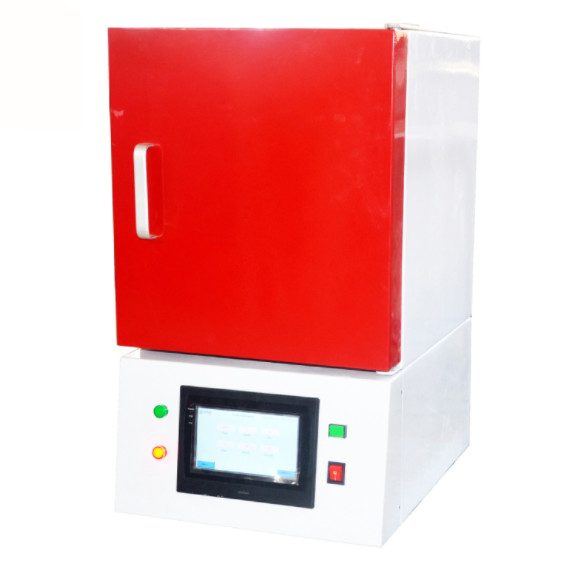

1700C Ceramic Furnace Description
1700C ceramice furnace is a high-temperature reaction equipment, mainly used in chemical synthesis, analysis, thermodynamics, material science and physical experiments in the laboratory.1700C ceramice furnace can provide reaction conditions such as high temperature, inert atmosphere, or controlled oxidation atmosphere, so that experiments can be carried out under more precise and stable conditions.1700C ceramice furnaces are widely used in organic synthesis, inorganic synthesis, anhydrous synthesis, high temperature synthesis, thermogravimetric analysis, etc., and are one of the basic equipment commonly used in laboratories.
1700C Ceramic Furnace Application:
1700C ceramice furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
1700C Ceramic Furnace Character:
A) Low thermal mass insulation for fast response & energy efficiency.
B)Ceramic furnace shell structure: double shell structure with aircooled system to ensure the furnace shell close to room temperature when the equipment is running and avoid accidents
C) Our electric muffle furnace uses high quality heating element ensure furnace long service life
D) Temperature control safety: with overtemperature protection; broken even protection; leakage protection;equipment operation safe and reliable
E) Chamber material: alumina microcrystalline fiber to ensure uniform temperature field and good insulation properties
Technical Parameter of 1700C Ceramic Furnace :
|Product||SP-1700B-7 ceramic furnace|
|Useful chamber size||200*200*300mm(8L W * H* D)|
|Max Temp||1700℃ ( < 3 hrs)|
|Working Temp||100-1600℃ (adjustable, for long time )|
|Temp accuracy||±1 ℃|
|Heating rate||1-20℃/min (adjustable,advise less than 15℃/min)|
|Heating Element||Super MoSi2 rod heating element|
|Furnace liner||Light durable ceramic fiber plate|
|Furnace shell||Double shells with fan cooling|
|Temp. measurement||By B type thermocouple|
|Temp. Control||30 segments programmable and PID auto control|
|Temperature display mode||Four Figure Liquid Crystal Display|
|Furnace surface temperature||≤55.C|
|Working Voltage||AC,1-phase ,220V ,50/ 60HZ|
|Optional part||Can be connected with computer if customer need|
|Freebies||1.oven glove 1 set ; 2. Pliers 1pc 3. Extra MoSi2 rod 2pcs|
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
Contact Person: Vera Zuo
