Product Details:
Payment & Shipping Terms:
|
| Name: | Mini Gold Melting Furnace | Colour: | Red ,black ,orange |
|---|---|---|---|
| Capacity: | 2kg Gold | Crucible: | High Purity Graphite Crucible |
| Rated Power: | 1.8KW | Packing Size: | 38.5x38.5x44cm |
| Dimension Of Crucible: | Dia7.2*H15.5cm | Crucible Material: | High Purity Graphite |
| Net Weight: | 10kg | ||
| High Light: | precious metal melting furnace,gold induction furnace |
||

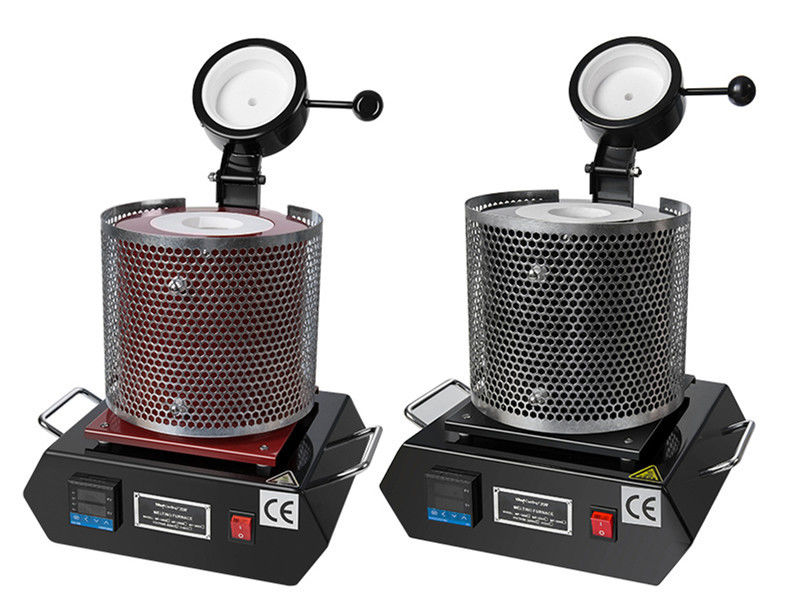

1. Instruction and features of mini silver melter:
Fast speed of melting, saving energy, less burnt loss, pure molten liquid.
furnace apply SSR controller, alloy made heater with melting temp up to 1200°C, high temp proof ceramic melting chamber , high aluminium protection and other advanced, top quality components to improved it's durability and
working efficiency over current markets furnaces.
2. 2kg silver melter technical data :
| Name | portable 2kg gold melting furnace |
| Capacity | 2kg (gold ) |
| Power input( (w) | 1600 |
| Power supply(220v) | 50,60hz/7.5A |
| Power supply(110v) | 50,60Hz/15A |
| Measurement accuracy | + 0.5%FS |
| Working environment | 0-50°C, 30-85%RH |
| capacity of crucible | 212.73cm3 |
| external dimension of crucible | dia7.2*H15.5cm |
| Net size(cm) | L35xW35xH38 |
| Packing size(cm) | L38xL38xH42 |
| Net weight(kg) | 11 |
| Packing weight(kg) | 13 |
3. Silver melter features
3. Silver melter accessories:
Melting unit , high purity graphite crucible , furnace glove , liquid stirring ,graphite tank .Above accessories can also be prepared according to your requrement .
4. package of small gold silver smelter:
Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.
5. Delivery time
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 7 days to 15 days according to different products request.
6. Our Warranty :
(1) control circuit 1 year ;
(2) furnace pipe 6 months;
(3) heating elements: for pure gold and silver warranty for 3 months ;if for corrosive material ,no warranty.
Attention:
To ensure the durability and good function of the melting furnace, it is recommended that the continuous working time should not exceed 3 hours. Please stop for 30 minutes to cool the furnace after 3 hours.Inspect crucible damage regularly to avoid damage to furnace wire.The maximum temperature of furnace is 1150 degrees, melting beyond this temperature is forbidden. Please note that Gold and silver recovered with acid and alkali will corrode the furnace wire. If you need to melt the metal containing acid and alkali, it is recommended to open the furnace cover in the smelting process to evaporate the exhaust gas .
If you have any special requirement on this furnace ,please send email to us ,we are able to design the melting furnace according to your requirement .
