Product Details:
Payment & Shipping Terms:
|
| Temperature Control: | PID Controller | Capacity: | 1kg ,2kg ,3kg Gold |
|---|---|---|---|
| Crucible: | High Purity Graphite Crucible | Rated Temperature: | 1150C |
| Plug: | Customized | Heating Element: | High Temp Alloy Heating Coils |
| Temperature Accuracy: | +/-5%FS | Sapre Parts: | Graphite Crucible , Crucible Tong |
| Melted Material: | Gold , Silver , Copper | ||
| High Light: | precious metal melting furnace,gold induction furnace |
||

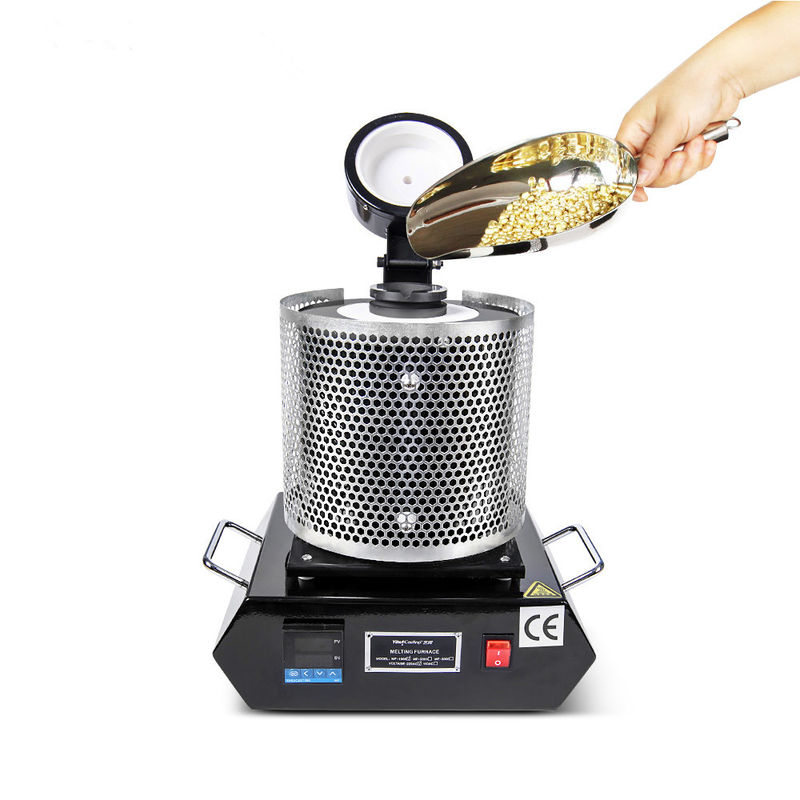

1. Portable gold melting oven advantage :
MF series apply SSR controller, alloy made heating element which has melting point up to 1900℃ ,high temp proof ceramic melting chamber ,high aluminium protection and other advanced,top quality components , in addition to unique design, all consolidate furnace's durability and working efficiency over current markets furnaces.
2. Technical data of portable gold melting oven :
| Capacity | 1kg | 2kg | 3kg |
| Power input( (w) | 1500 | 1600 | 1700 |
| Power supply(220v) | 50,60hz/7A | 50,60hz/7.5A | 50,60hz/8A |
| Power supply(110v) | 50,60Hz/14A | 50,60Hz/15A | 50,60Hz/16A |
| Measurement accuracy | + 0.5%FS | + 0.5%FS | + 0.5%FS |
| Working environment | 0-50°C, 30-85%RH | 0-50°C, 30-85%RH | 0-50°C, 30-85%RH |
| Net size(cm) | L31xW36xH37 | L31xW36xH37 | L31xW36xH37 |
| Packing size(cm) | L38xL38xH42 | L38xL38xH42 | L38xL38xH42 |
| Net weight(kg) | 11 | 11 | 11 |
| Packing weight(kg) | 13 | 13 | 13 |
3. Gold melting oven instruction and features:
Fast speed of melting, saving energy, less burnt loss, pure molten liquid.
furnace apply SSR controller, alloy made heater with melting temp up to 1200°C, high temp proof ceramic melting chamber , high aluminium protection and other advanced, top quality components to improved it's durability and
working efficiency over current markets furnaces.
Thanks to the use of a heat-resistant and efficient insulation, the radially arranged heating element can give full effect and a homogeneous temperature distribution results in the melting crucible. The high performance and the good insulation ensure a rapid reaching of the desired melting temperature.
In addition to housing insulation, a thermally insulated grid protects against accidental contact with the heating chamber. This is an important safety feature when dealing with the melting furnaces. To match the melting crucible, we supply a melting tongs that fit into the groove around the crucible head. This allows you to work safely with the hot melt crucible.
4. package of small gold smelter:
Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.
5. Delivery time
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 7 days to 15 days according to different products request.
6. Our Warranty :
(1) control circuit 1 year ;
(2) furnace pipe 6 months;
(3) heating elements: for pure gold and silver warranty for 3 months ;if for corrosive material ,no warranty.
NOTICE
The following vulnerable parts without warranty:
Furnace wire, Graphite crucible, Thermoprobe.
Do you have any questions on our furnace ?
1) Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2) How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3) How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4) If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
