Product Details:
Payment & Shipping Terms:
|
| Measuring Time: | 5 Seconds | Weight Range: | 0.005-300g |
|---|---|---|---|
| Density Resolution: | 0.001g/cm3 | Measuring Principle: | Archimedes Principle |
| Plug Type: | Uropean Type;British Type;American Type;Australian Type | Power Supply: | AC110/220V±10%, 50/60HZ |
| Warranty: | 1 Year | Standard Deviation: | 0.005g |

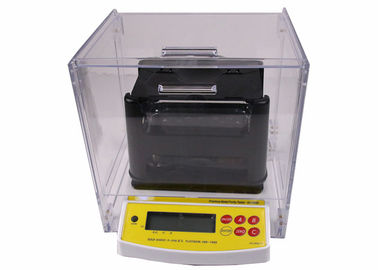

| Gross Weight: | 4.5kg | Name: | Gold Silver Density Tester |
| High Light: | metal purity testing machine,precious metal analyzer |
||
Density tester specifications:
The high-precision digital solid density test equipment is mainly used in rubber, plastic, wire and cable, food,
composite materials, shoe materials, glass, precious metal hardware recovery and other industries. Solids,
granules, thin-film body, the floating body, a powder body of the sample can be directly read out the average
weight, the average weight in the water, and the specific gravity value, density, volume, the percentage in the
air,convenient and quick.
Apply to
Precious metal.such as gold,Karat gold,platinum,silver.
Mixed metal or other alloy metal.
Jewelry materials.such as ring,necklace,bracelet,watchband,belt fastener,gold ingot,gold bar,statue,coin.,etc.
Density tester features
a) The purity of gold,platinum,and other precious metals can be measured in a short time.the fake can be distinguished.
b) No damage testing, cleaning and environmental protection.
c) Measuring just need 15 seconds,convenience,stabilization,and accuracy.
d) Multi-mode,gold mode,platinum mode,other precious metals mode can be shifted.
e) Multi-function;the purity of other precious metals can be measured.such as tin,copper,silver.,etc.also can be used as precision balance.
f) Function of top and bottom limitation;it can display"OK,HI,LO" in the state of qualified,exceed,less;Prompt alarm.
g) Function of automatic zero tracking,buzzer warning,and overload warning.
h) Function of solution compensation.necessary if liquid other than water is used as a medium for measurement.
i) Adopt the completed high-capacity transparent injection mould sink,which can resist damage and corrosion.
j) Adopt the completed special windproof and dustproof cover,which is convenient and durable.
k) Interface of RS-232C is included.the machine is available to connect PC with printer.
Density tester technical parameter :
| Model | SP-300PM | SP-600PM | SP-900PM | SP-1200PM | |
| Weight | Range | 0.005~300g | 0.005~600g | 0.01~900g | 0.01~1200g |
| Standard deviation | 0.005g | 0.005g | 0.01g | 0.01g | |
| Density | readability | 0.001 g/cm3 | |||
| Testing board | ABS injection moulding | ||||
| Density range | 0.001~99.999g/cm3 | ||||
| Result display | Apparent density,volume density,wet density,overall porosity,effective porosity,open pore volume,bulk volume,oil content,water absorption | ||||
| Measuring time | About 5 seconds | ||||
|
Opening lid method for testing board |
Unobstructed without lifting lid design | ||||
| Water tank | Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm) | ||||
| Parameter setting | Water temperature setting,measuring medium density setting,primary materials and secondary materials setting,air density setting,suspension wire buoyancy deviation setting | ||||
| Calibration method | Single key calibration,automatically testing | ||||
| Standard components |
(1) host(2)water tank(3)testing board(4)tweezers(5)thermometers (6)weight(7)windproof dustproof cover(8)power transformer |
||||
| interface | Standard RS-232 interface | ||||
| Optional accessories | SP-40 printer,data connecting wire | ||||
| Power supply | AC100V~240V 50HZ/60HZ (Europe standard) | ||||
Measurement Procedure of Gold Silver Density Tester
a) measure the gold weight in air,and then press the ENTER button to memory.
b) Place the gold into water to measure the weight,and then press the ENTER button to memory.show the K value of gold,purity percent,density value.
Standard accessories of Gold Silver Density Tester
Host,sink,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer.
