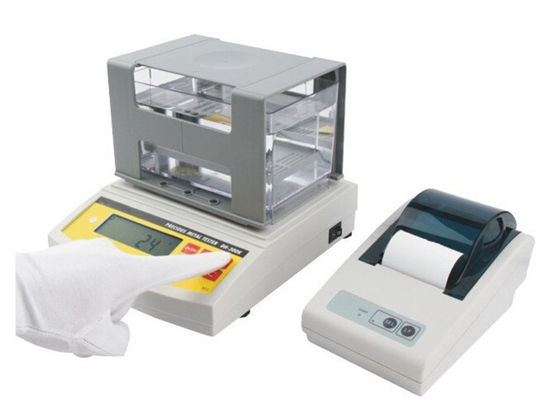

Precious Metal Purity Testing Machine , Material Testing Machine Jewelry Purity Analyser Meter

Precious Metal Purity Testing Machine , Material Testing Machine Jewelry Purity Analyser Meter
Precious Metal Purity Testing Machine , Material Testing Machine Jewelry Purity Analyser Meter

Large Image :  Precious Metal Purity Testing Machine , Material Testing Machine Jewelry Purity Analyser Meter

Product Details:

Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1200PM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: by strong carton
Delivery Time: 5-8 working days for standard model
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Measuring Principle: Archimedes Principle Capacity: 0.01-1200g
Readability: 0.001g/cm3 Measuring Time: 10-15s
Power Supply: AC110/220V±10%, 50/60HZ Plug Type: As Demands
Delivery: Fast Name: Gold Silver Purity Testing Machine
Testing Board: ABS Injection Moulding Interface: Standard RS-232 Interface
High Light:

metal purity testing machine

,

gold purity checking machine

         Digital Precious Metal Platinum Jewellry Purity Analyser Meter SP-1200PM



Application of this Silver Purity Testing Machine  machine

pawn broking, bank, jewelry shop, precious-metals recovery, jewelry factory, Gemstone Testing Center,precious metals researching.etc.



In accordance with archimedes principle water buoyancy method, GB/T1423 of precious metals testing standard,and so on.



Combine archimedes principle with micro electronic technique;adopt sensor imported from Germany,the purity can be calculated through measuring density of precious metals.features of no damage on sample;simple operation,fast and accurate.



K value of gold,PT value of platinum,density value,purity percentage can be measured.



Silver Purity Testing Machine Apply to :

  1. Precious metal.such as gold,Karat gold,platinum,silver.
  2. Mixed metal or other alloy metal.
  3. Jewelry materials.such as ring,necklace,bracelet,watchband,belt fastener,gold ingot,gold bar,statue,coin.,etc.





Precious Metal Purity Testing Machine , Material Testing Machine Jewelry Purity Analyser Meter 0



Silver Purity Testing Machine Features:



* Multi-mode, gold mode, platinum mode, other precious metals mode can be switched.

* Top and bottom limitation of K value, purity and density of gold. And prompt alarm.

* Automatic zero tracking, buzzer warning, and overload warning.

* No damage testing, cleaning and environmental protection.

* Could be used as precision balance.

* Water and other liquids could be used as measurement medium.

* RS-232C is included.





Technical parameter of Silver Purity Testing Machine:



Model SP-2000K SP-3000K SP-5000K
Capacity 0.01~2000g 0.01~3000g 0.01~5000g
Density Resolution 0.001g/cm3 0.001g/cm3
Measuring Time 10~15s
Measuring Principle Archimedes principle
Testing Board Unibody high-capacity plastic testing board
Gold Mode Display K Value The K value of mixture of gold, silver, and copper; mixture of gold and copper; mixture of gold and silver
Display Purity Percentage The purity content of mixture of gold, silver and copper; mixture of gold and copper; mixture of gold and silver
K Value Range 9K~24K
Copper and Silver Proportion Setting Cycle setting depends on user’s preference (default 7:3)
Platinum Mode Display Value PT percentage, density value, volume
PT Value Range Pt600~Pt1000
Calibration Mode Auto correction, auto detection
Standard Accessories Tank, testing board, tweezer, thermometer, weight, windshield, power transformer, a set of gold particle measuring assembly
Option Accessories Printer(RS-232)
Power Supply AC110/220V±10%, 50/60HZ



Measurement Procedure

a) measure the gold weight in air,and then press the ENTER button to memory.

b) Place the gold into water to measure the weight,and then press the ENTER button to memory.show the K value of gold,purity percent,density value.

Standard accessories

Host,sink,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer.



Contact us feel free if you have any special requirement .
