Product Details:
Payment & Shipping Terms:
|
Power Supply: | AC110/220V±10%, 50/60HZ | Weight Range: | 0.005-600g |
---|---|---|---|
Readability: | 0.001g/cm3 | Measuring Time: | 5 Seconds |
Measuring Principle: | Archimedes Principle | Plug Type: | As Demands |
Standard Deviation: | 0.005g | Gross Weight: | 4.5kg |
Name: | Metal Purity Analyser | Testing Board: | ABS Injection Moulding |
Highlight: | gold purity checking machine,precious metal analyzer |
Metal Purity Analyser Meter Specifications:
The high-precision digital solid density test equipment is mainly used in rubber, plastic, wire and cable, food,
air,convenient and quick.
Metal Purity Analyser Meter Apply to

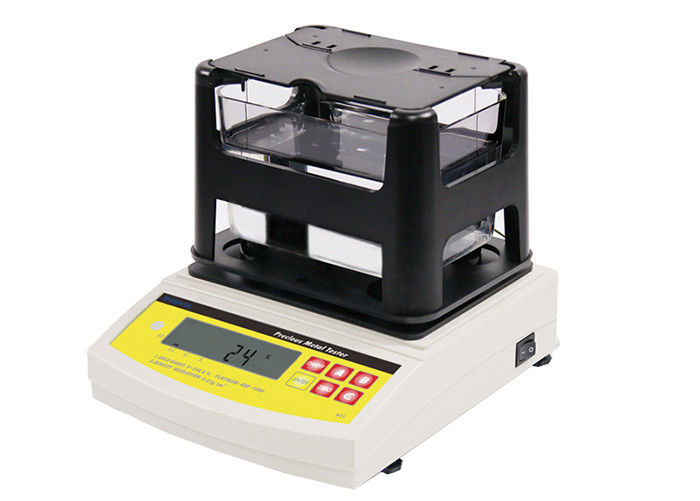

Metal Purity Analyser Meter
1, as long as 10 seconds (two steps) can be directly read the specific gravity, the volume value, purity%.
2, the proportion of parts molding, will not cause water leakage.
3, RS-232C computer interface, and can be easily connected to the PC and printer.
4, using the design of the large tank , to reduce the error caused by the buoyancy of the hanging bar line.
5, can be directly set the temperature compensation setting solution compensation setting.
6, the smallest weighing precision 0.005g, the proportion of calculus precision 0.001g.7, we can set the
Density tester technical parameter :
Model | SP-300PM | SP-600PM | SP-900PM | SP-1200PM | |
Weight | Range | 0.005~300g | 0.005~600g | 0.01~900g | 0.01~1200g |
Standard deviation | 0.005g | 0.005g | 0.01g | 0.01g | |
Density | readability | 0.001 g/cm3 | |||
Testing board | ABS injection moulding | ||||
Density range | 0.001~99.999g/cm3 | ||||
Result display | Apparent density,volume density,wet density,overall porosity,effective porosity,open pore volume,bulk volume,oil content,water absorption | ||||
Measuring time | About 5 seconds | ||||
Opening lid method for testing board |
Unobstructed without lifting lid design | ||||
Water tank | Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm) | ||||
Parameter setting | Water temperature setting,measuring medium density setting,primary materials and secondary materials setting,air density setting,suspension wire buoyancy deviation setting | ||||
Calibration method | Single key calibration,automatically testing | ||||
Standard components |
(1) host(2)water tank(3)testing board(4)tweezers(5)thermometers (6)weight(7)windproof dustproof cover(8)power transformer |
||||
interface | Standard RS-232 interface | ||||
Optional accessories | SP-40 printer,data connecting wire | ||||
Power supply | AC100V~240V 50HZ/60HZ (Europe standard) |
Metal Purity Analyser Meter Measurement Procedure
a) measure the gold weight in air,and then press the ENTER button to memory.
b) Place the gold into water to measure the weight,and then press the ENTER button to memory.show the K value of gold,purity percent,density value.
Metal Purity Analyser Meter Standard accessories
Host,sink,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer.
