Fast Heating Electric Muffle Oven Chamber Heating Furnace 12L

Fast Heating Electric Muffle Oven Chamber Heating Furnace 12L
Fast Heating Electric Muffle Oven Chamber Heating Furnace 12L

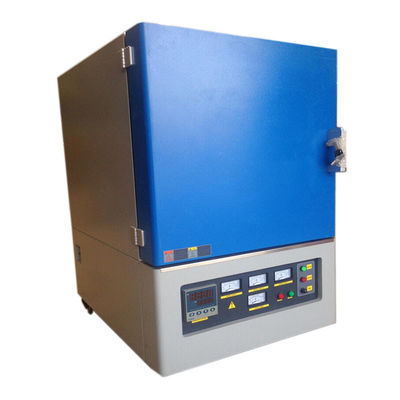

Large Image :  Fast Heating Electric Muffle Oven Chamber Heating Furnace 12L

Product Details:
Place of Origin: China
Brand Name: CE
Certification: CE
Model Number: SP-1700B-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 300sets per month
Detailed Product Description
Max. Temperature: 1700C Operation Chamber Size: 200x200x300mm
Rated Power: 6kw Insulation Material: Light Alumina Ceramic Fiber Board
Furnace Structure: Double Shell To Make Sure Low Surface Temperature Temperature Control: 30 Segments Programmable And PID Auto Control
Heating Element: MoSi2 Rod Name: 1700C High Temperature Furnace
High Light:

Fast Heating Electric Muffle Oven

,

12L Electric Muffle Oven

,

Chamber Heating Furnace 12L

          Fast Heating Electric Oven Chamber Heating Furnace



1700.C fast heating electric chamber furnace is an effective high temperature lab testing furnace. The furnace consists of high quality alumina fiber board and Superior MoSi2 heating elements with special design, and can be used up to 1700°C. It is an ideal tool for materials annealing and sintering in your research laboratory.



INTRODUCTION of electric chamber heating furnace:

1. chamber size :from 100*100*100mm to 600*600*600mm (1L- 216L)

2.operation temperature:100C to 1600.C .Max temperature : 1700.C

3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.

4.heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .

5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .



 Technical data of electric chamber heating  furnace :

Style: SP-1700B-12L
Standard Working Temperature 1600.C ( continuous )
Maximum Working Temperature 1700.C ( < 3 hrs)
Inside Chamber Size 200*200*200mm (Customizable)
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~20.C/ min (suggestion:<10.C)
Temperature Accuracy +/- 1.C
Working Voltage AC 220V Single Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element MoSi2 heating elements
Thermocouple B type
Max. Power 2KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 pc







Warranty:

Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.

Fast Heating Electric Muffle Oven Chamber Heating Furnace 12L 0



Super company service :



·  load container at Qingdao, Tianjin, Shanghai etc.

· provide shipping method: Courier service, Air transport, Sea transport and rail transport.

· accept order: Full container cargo load, LCL and sample order

· provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc

· has complete quality control system and after-sale service
