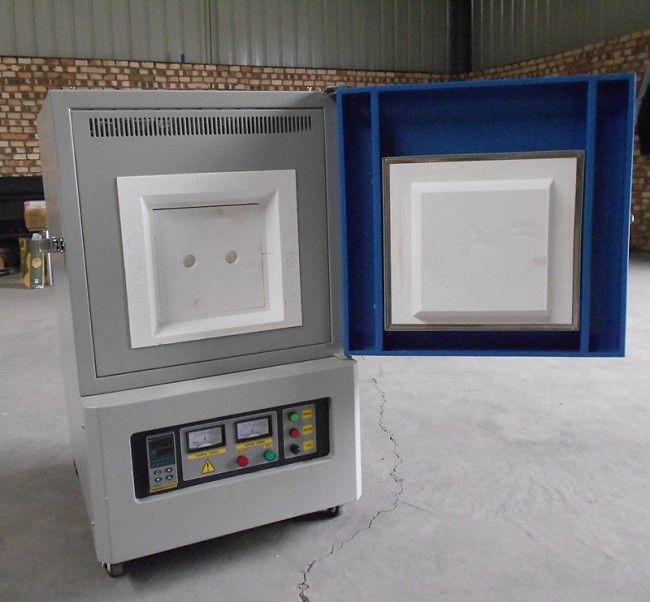

12 Liter Muffle Lab Furnace High Temperature 1700 Degree

12 Liter Muffle Lab Furnace High Temperature 1700 Degree
12 Liter Muffle Lab Furnace High Temperature 1700 Degree

Large Image :  12 Liter Muffle Lab Furnace High Temperature 1700 Degree

Product Details:
Place of Origin: China
Brand Name: CE
Certification: CE
Model Number: SP-1700B-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 300sets per month
Detailed Product Description
Name: Muffle Lab Furnace High Temperature Max. Temperature: 1700 Degree
Operation Chamber Size: 200x200x300mm Rated Power: 6kw
Insulation Material: Light Alumina Ceramic Fiber Board Furnace Structure: Double Shell To Make Sure Low Surface Temperature
Temperature Control: 30 Segments Programmable And PID Auto Control Heating Element: MoSi2 Rod
High Light:

12 Liter Muffle Lab Furnace

,

12L Lab Furnace High Temperature

,

Muffle Lab Furnace 1700 Degree

12 Liter Muffle Lab Furnace High Temperature 1700 Degree



Feature of Lab Furnace High Temperature



1. Special door design, easy to operate to avoid the leakage of high temperature.

2. Micro pocessore & PID controller, Accurate Controlled Temperature, safe and reliable

3. Anti-corrosion chamber with long life (Firebricks Chamber or Ceramic fiber Chamber)

4. Good door seal to minimum the loss of heat, increase the uniformity of temperature in chamber.

5. The console and furnace are for separate operation to avoid the quality and precision problem for the console caused by high temperature,and it is also convenient for mainting



INTRODUCTION of electric chamber heating furnace:


1. chamber size :from 100*100*100mm to 600*600*600mm (1L- 216L)

2.operation temperature:100C to 1600.C .Max temperature : 1700.C

3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.

4.heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .



 Technical data of electric chamber heating  furnace :



Style: SP-1700B-12L
Standard Working Temperature 1600.C ( continuous )
Maximum Working Temperature 1700.C ( < 3 hrs)
Inside Chamber Size 200*200*200mm (Customizable)
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~20.C/ min (suggestion:<10.C)
Temperature Accuracy +/- 1.C
Working Voltage AC 220V Single Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element MoSi2 heating elements
Thermocouple B type
Max. Power 2KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 pc







Warranty:

Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.

12 Liter Muffle Lab Furnace High Temperature 1700 Degree 0



Super company service :



·  load container at Qingdao, Tianjin, Shanghai etc.

· provide shipping method: Courier service, Air transport, Sea transport and rail transport.

· accept order: Full container cargo load, LCL and sample order

· provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc

· has complete quality control system and after-sale service
