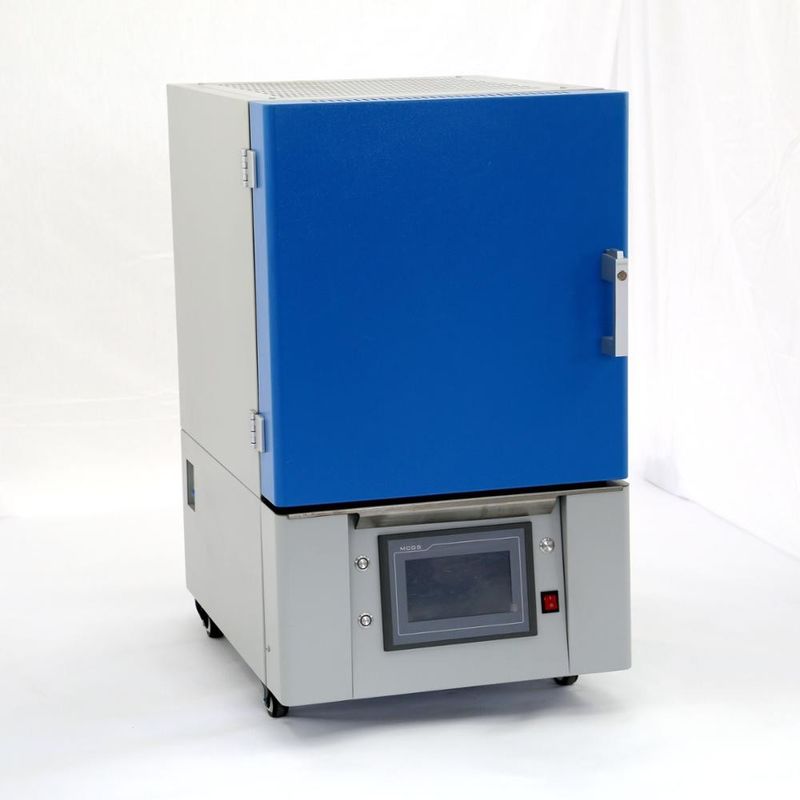

1700C Lab Vacuum Heat Treatment Furnace , 64L High Temperature Sintering Furnace

1700C Lab Vacuum Heat Treatment Furnace , 64L High Temperature Sintering Furnace
1700C Lab Vacuum Heat Treatment Furnace , 64L High Temperature Sintering Furnace

Large Image :  1700C Lab Vacuum Heat Treatment Furnace , 64L High Temperature Sintering Furnace

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1700B-64
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, , L/C
Supply Ability: 300 sets per month
Detailed Product Description
Goods: Heat Treatment Furnace Certification: CE
Warranty: 12 Months Chamber Size: 400x400x400mm
Temperature Control: 50 Segments Programmable PID Pro Auto Control Max. Temperature: 1700℃
Operation Temperature: 1600℃ Heating Element: MoSi2 Rod Heating Element
Power: Electric Thermocouple: B Type
High Light:

high temperature box furnace

,

scientific muffle furnace

   1700C Lab Heat Treatment Furnace 64L Powder Sintering Small Workpiece Heating





Heat Treatment Furnace Instruction :



The lab heat treatment furnaces are the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.

  • Tmax 1700 °C
  • Heating from two sides by ceramic heating plates (heating from three sides for large muffle furnaces
  • Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
  • Only fiber materials are used which are not classified as carcinogenic according
  • Dual shell housing for low external temperatures and high stability
  • Adjustable air inlet integrated in door (see illustration)
  • Exhaust air outlet in rear wall of furnace(alternal)
  • Solid state relays provide for low-noise operation
  • Defined application within the constraints of the operating instructions

Additional equipment

  • Over-temperature limiter with adjustable cutout temperature for thermal protection
  • Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)
  • Observation hole in the door
  • Manual or automatic gas supply system
  • Process control and documentation via VCD software package for monitoring, documentation and control

1700C Lab Vacuum Heat Treatment Furnace , 64L High Temperature Sintering Furnace 0



model  SP-1700B-64L
Standard Working Temperature 1600.C ( continuous )
Maximum Working Temperature 1700.C ( < 3 hrs)
Inside Chamber Size Customizable
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15.C/ min (suggestion:<10.C)
Temperature Accuracy +/- 1.C
Temperature uniformity  +/- 1.C
Working Voltage AC 380V 3- Phase 60/50 Hz (or according to your requirement)
Furnace structure Double shell with fan cooling
Heating Element MoSi2 heating element
Thermocouple B type
Max. Power 24KW
Standard package included with the furnace:
Part description Quantity
Thermal couple 1 pc
Door block 1pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 set
MoSi2 rod (extra) 2pcs





Many experiments and procedures taken in the lab requiring extreme heat environment from 400-1900.C. For this purpose, the high temperature muffle furnace steps in as the necessary part of laboratory equipment. SUPER furnace are providing the muffle furnace at a affordable cost including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.



Delivery times :

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.



Our Warranty :

Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.



About Shipping

1. Order processing?

Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
