Digital Control High Temperature Muffle Furnace Double Shell 3.4L Capacity

Digital Control High Temperature Muffle Furnace Double Shell 3.4L Capacity
Digital Control High Temperature Muffle Furnace Double Shell 3.4L Capacity

Large Image :  Digital Control High Temperature Muffle Furnace Double Shell 3.4L Capacity

Product Details:
Place of Origin: China
Brand Name: CE
Certification: CE
Model Number: SP-1700B-3.4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard plywood case for export
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 300sets per month
Detailed Product Description
Max. Temperature: 1700C Operation Temperature: Lower Than 1600C
Operation Chamber Size: 150x150x150mm Rated Power: 3.5kw
Insulation Material: Light Alumina Ceramic Fiber Board Furnace Structure: Double Shell To Make Sure Low Surface Temperature
Temperature Control: 30 Segments Programmable And PID Auto Control Heating Element: MoSi2 Rod
Name: 1700C High Temperature Furnace
High Light:

high temperature box furnace


vacuum heat treatment furnace

                             1700C High Temperature Laboratory Box Muffle Furnace 3.4L

                                           Digital Control MoSi2 Rod Heating

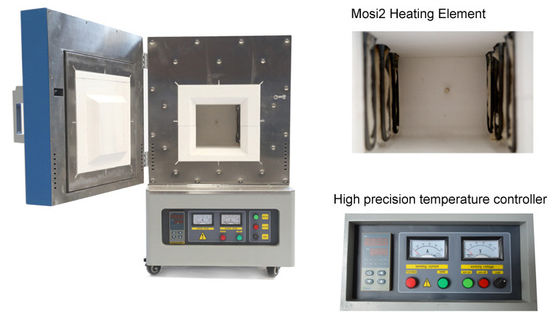

1700.C High Temperature laboratory muffle furnace is an effective high temperature lab testing furnace. The furnace consists of high quality alumina fiber board and Superior MoSi2 heating elements with special design, and can be used up to 1700°C. It is an ideal tool for materials annealing and sintering in your research laboratory.


INTRODUCTION of laboratory box muffle furnace:

1. chamber size :from 100*100*100mm to 600*600*600mm (1L- 216L)

2. operation temperature:100C to 1600.C .Max temperature : 1700.C

3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.

4. heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .

5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .


 Main technical data of laboratory box muffle furnace :

Model SP-1700B-3.4
Power supply AC380V 50/60HZ
Furnace chamber 400*300*300mm(W x H x D Customizable)
Rated power 3.5KW
Furnace chamber 1700 type alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties.
Heating elements High quality silicon molybdenum rod (MoSi2 rod)
Thermocouple B-type double platinum rhodium thermocouple
Temperature control mode The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program
Continuous working temperature ≤1600℃
Maximum temperature 1700℃
Max. Heating rate 20℃/min
Recommended heating rate 10℃/min
Temperature control accuracy ±1℃
Standard accessories Door brick 1 piece ;Crucible tongs 1 piece
Optional accessories Furnace hobs , a variety of corundum crucible, oven glove,computer control software and paperless recorder, etc.




SUPER Company Goods Warranty:

Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.



SUPER company service :


·  load container at Qingdao, Tianjin, Shanghai etc.

· provide shipping method: Courier service, Air transport, Sea transport and rail transport.

· accept order: Full container cargo load, LCL and sample order

· provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc

· has complete quality control system and after-sale service
