Product Details:
Payment & Shipping Terms:
|
| Name: | Bottom Loading Muffle Furnace | Max.Temperature: | 1600℃ |
|---|---|---|---|
| Operation Temperature: | 1500℃ | Temperature Control: | 30 Segments Programmable PID Control |
| Temperature Mesasuring: | By B Type Thermocouple | Working Zone Size: | 400*400*400mm |
| Temperature Accuracy: | 1℃ | Heating Element: | MoSi2 Rod |
| Heating Rate: | 15-20℃/min | Type: | Bottom Loading |
| High Light: | high temperature box furnace,vacuum heat treatment furnace |
||
Simple introduction of bottom loading muffle furnace :
1. Max Temp:1650C;Work Temp:1600.C
2. Heated by MoSi2 heating elements
3. chamber size:400x400x 400mm (16"x16"x16")

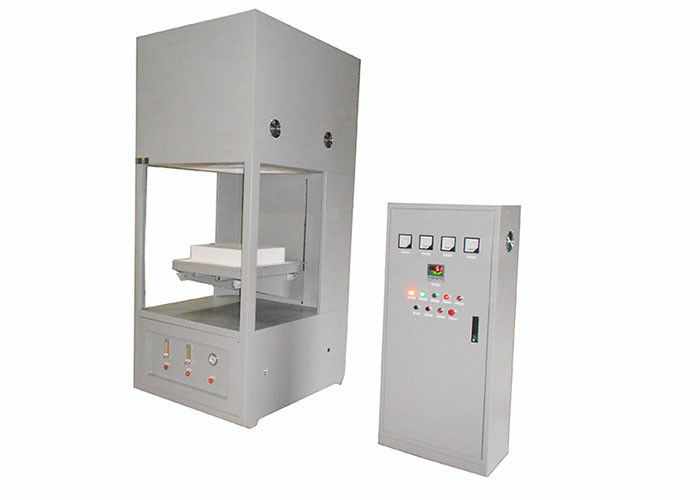

SP-1600BL Bottom Loading Furnace:The single zone, high temperature, bottom loading furnace is
capable of operating at temperatures up to 1600C in air.The furnace utilizes 1800oC MoSi2 heating elements positioned on three sides of the internal chamber .The furnace utilizes an energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation. It is an ideal tool for materials annealing and sintering.
Bottom loading muffle furnace description :
| Inside Chamber Size | 400x400x 400mm (16"x16"x16" |
| Working Temperature | 1600.C ( continuous ) |
| Maximum Temperature | 1650.C ( < 3 hrs) |
| Temperature Control | Independent temperature control cabinet |
| Temperature Control : | 708P intelligent temperature controller |
| Heating Rate | 0~ 10.C/ min (suggestion: =< 10.C ) |
| Temperature Accuracy | +/- 1 .C |
| Heating Element | MoSi2 heating elements |
| Thermocouple | B type |
| Working Voltage | AC 380V Three Phases 60/50 Hz (or according to your requirement) |
| Furnace structure | Doouble shell with fan cooling |
| Furnace Door | lift type, Electric hydraulic elevator system |
| Chember | importing fireproofing marterials, heat preservation |
Standard sizes of SUPER bottom loading muffle furnace:
| Model | Chamber size(WxHxDmm) | Max. Temperature |
| SP-1600BL | 300x300x 400mm (12"x12"x16") | 1650.C |
| SP-1600BL | 400x400x 400mm (16"x16"x16") | 1650.C |
| SP-1600BL | 500x500x 500mm (20"x20"x20") | 1650.C |
The characteristics include:
1). Big yield capacity and high productivity,especially used for heating treatment of small or medium products;
2). PID automatic control via current limiting phase angle fired thyristor with 30 steps programmable,to ensure uniform furnace temperature;
3). Loading from bottom,it's convenient and easy.
Options:
Atmosphere Envelopes for applications requiring sealed workspaces for processing in inert gases.
Bottom loading vertical tube units for convenient loading of small crucibles combined with corrosion resistance and atmosphere control.
Bottom loading furnace is aviliable from working temperature 800 .C to 1600.C Furnace chamber size is customizable.
Furnace applications :
1. Gravimetric analysis;
2. Sintering or Roasting or Forging or Calcining;
3. Quantitative analysis;
4. Heat treating or Preheating;
5. Quenching or Hardening or Austempering
6. Annealing or Tempering or Normalizing
7. Stress Relieving
8. Temperature measurement
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase.Within this period, Across International will,at its sole options,replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.Major Products and Services:lab furnace,muffle furnace,tube furnace,crucible furnace,vacuum furnace,atmosphere furnace,dental furnace,silicon carbide(SIC) heating elements,Molybdenm Disilicide(MoSi2) heating elements.
