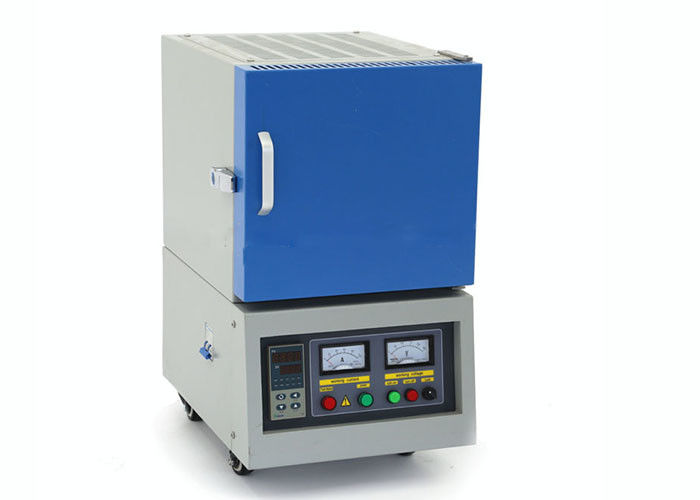

Lab High Temperature Muffle Furnace For Ceramic Sintering Easy Operation Oven

Lab High Temperature Muffle Furnace For Ceramic Sintering Easy Operation Oven
Lab High Temperature Muffle Furnace For Ceramic Sintering Easy Operation Oven

Large Image :  Lab High Temperature Muffle Furnace For Ceramic Sintering Easy Operation Oven

Product Details:
Place of Origin: China
Brand Name: SP
Certification: CE
Model Number: SP-1200B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 500 sets/month
Detailed Product Description
Product: Electric Lab Furnace Classification: Laboratory Heating Equipments
Heating Element: Resistance Wire Chamber Size: 300x300x400mm
Max. Temp.: 1200℃ Operation Temperature: 1100℃
Temperature Accuracy: ±1℃ Furnace Structure: Double Shells With Fan Cooling
Temperature Measuring: By B Type Thermocouple Warranty: 1 Year
High Light:

high temperature box furnace

,

vacuum heat treatment furnace

       Industry 1100C PID Controller Electric Lab Furnace Easy Operation Oven





High Temperature Electric Lab Furnace Main Function & Features:



The box lab furnace is small in size, which is equivalent to the size of a computer mainframe. It has a double-shell structure and the furnace is made of alumina polycrystalline fiber material. The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently rise and fall.





1200c laboratory muffle furnace oven, which can be used for ceramic sintering in the laboratory. The product is mainly used for laboratory high temperature sample sintering, annealing,brazing etc.

It is mainly applied to Laboratory heat treatment,thin film preparation,small sample annealing etc. The double layer chamber structure with installed cooling fan can protect the user from over heat burn,also the cooling fan can help furnace achieve programmable controlled cooling.





Technical data of high temperature electric lab furnace

Items Specification
Product SP-SP1200B-36L high temeprature electric muffle furnace
Useful chamber size 300*300*400mm(36L W * H* D)
Max Temp 1200℃ ( < 3 hrs)
Working Temp 0-1100℃ (adjustable, for long time )
Temp accuracy ±1 ℃
Heating rate 1-20℃/min (adjustable,advise less than 15℃/min)
Heating Element Resistance wire
Furnace liner Light durable ceramic fiber plate
Rated Power: 6KW
Furnace shell Double shells with fan cooling
Temp. measurement By k type thermocouple
Temp. Control 30 segments programmable and PID auto control
Temperature display mode Four Figure Liquid Crystal Display
Furnace surface temperature ≤55℃
Working Voltage AC,3-phase ,380V ,50/ 60HZ
Optional part Can be connected with computer if customer need
Freebies 1.oven glove 1 set ; 2. Pliers 1pc



The muffle furnaces are the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.

  • Tmax 1700 °C
  • Heating from two sides by ceramic heating plates (heating from three sides for large muffle furnaces
  • Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
  • Only fiber materials are used which are not classified as carcinogenic according
  • Dual shell housing for low external temperatures and high stability
  • Adjustable air inlet integrated in door
  • Exhaust air outlet in rear wall of furnace(alternal)
  • Solid state relays provide for low-noise operation
  • Defined application within the constraints of the operating instructions



More introduction about our company



1. Which procedure to secure your Quality?

Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.



2. How about your company product after-sales service system?

Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.



3. Products standards?

Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.



4. Our country's power supply and plug are different, how do you solve it?

We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.



5. Payment methods?

T/T, L/C, D/P and so on



6. Packing method?

Standard export wooden box packaging



7. Main export market?

Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.

10. How to ensure the customer standard use the instrument?

We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.
