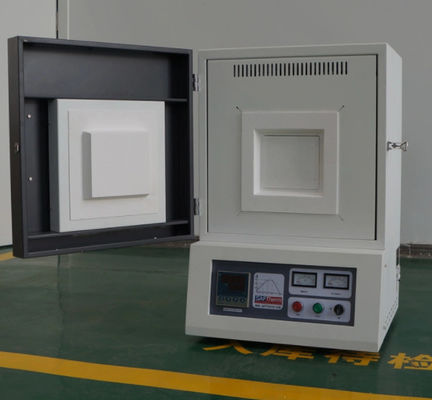

1800 Degrees Laboratory Muffle Furnace With 1900 grade Mosi2 Heating Element

large.img.alt
small.img.alt small.img.alt

Large Image :  1800 Degrees Laboratory Muffle Furnace With 1900 grade Mosi2 Heating Element

Product Details:
Place of Origin: China
Brand Name: SUPER
Certification: CE
Model Number: SP-1800B-8L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 10-15 working days after down payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500sets/month
Detailed Product Description
Product: High Temperature Muffle Furnace Max. Temp: 1800C
Operation Temperature: 1700C Rated Power: 8kw
Chamber Size: 200x200x200mm Voltage: 380V,AC 380 Plus/minus 10V/50Hz
Type: MoSi2 Heater Heating Rate: Max 20C/min
Warranty: 12 Months Certification: CE
High Light:

1800 Degrees Laboratory Muffle Furnace

,

Mosi2 Laboratory Muffle Furnace

,

1800c high temperature laboratory furnace

                 1800degrees Laboratory Muffle Furnace

1800degrees Laboratory Muffle Furnace Description:


1. Lab Muffle Furnace chamber material use imported light weight high purity Al2O3 ceramic fiber materials, no powder pull off under high temperature, small heat capacity, and energy saving more than 50%.
2. Heavy duty double layer structure. Lower teperature in outside case.
3. Microcomputer PID control module, enabling precise temperature control and constant temperature requirements
4. Temperature control with 2groups/16 segments programmable.
5. Built in over temperature alarm and protection allows for operation without attendant.





High Temperature Muffle furnace Application:

Melting Muffle mainly used in chemical analysis, physical decomposition and synthesis, super hard

materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

1. Gravimetric analysis;

2. Sintering;

3. Quantitative analysis;

4. Heat treating;

5. Glass preparation;



Technical parameter of 8L high temperature muffle furnace :



Chamber size:200x200x200mm,8L. More bigger can be customized.

Rated voltage: AC 220V 50/60Hz.;

Power: 4kW;

Max. Temperature :1800.C (< 1/2 hour) ;

Continuous Working Temperature:0-1700.C;

Max. Heating Rate:0-20.C /min;

Temperature Accuracy :+/- 1.C ;

Heating Elements : MoSi2 heater

Thermocouple : B type.

RS232/485 Communications Port optional(need extra cost).

Temperature Control:PID automatic control and auto-tune function.

30 programmable segments for precise control.

Built-in over temperature alarm and protection allows for operation without attendant.

+/- 1 ºC temperature accuracy.



Stanard models of SUPER MUFFLE FURNACE

Model Max. Temp. Chamber size(WxHxD mm) Working voltage and power
SP-1700B-1L 1700℃ 100x100x100mm(4”x4”x4”) AC,1-phase,220V/1.5KW
SP-1700B-3.4L 1700℃ 150x150x150mm (6"x6"x6") AC,1-phase,220V,3.5KW
SP-1700B-4.5L 1700℃ 150x150x200mm (6"x6"x8") AC,1-phase,220V.4.5KW
SP-1700B-8L 1700℃ 200x200x200mm (8"x8"x8") AC,1-phase,220V,6KW
SP-1700B-12L 1700℃ 200x200x300mm (8"x8"x12") AC,1-phase,220V,8KW
SP-1700B-18.8L 1700℃ 250x250x300mm (10"x10"x12") AC,3-phase,220V,11KW
SP-1700B-36L 1700℃ 300x300x400mm (12"x12"x16") AC,3-phase,380V,16KW
SP-1700B-49L 1700℃ 350x350x400mm (14"x14"x16") AC,3-phase,380V,21KW
SP-1700B-64L 1700℃ 400x400x400mm (16"x16"x16") AC,3-phase,380V24KW
SP-1700B-125L 1700℃ 500x500x500mm (20"x20"x20") AC,3-phase,380V,36KW

1800 Degrees Laboratory Muffle Furnace With 1900 grade Mosi2 Heating Element 0



Packaging & Shipping
1) Packing: from the inside to outer packaging, is foam sponge, carton, wooden case.
2) Transport modes: Sea or Air transportation, TNT, DHL express or FedEx.
3) Please make sure the 'shipping address' is your confirmed address.
4) We do check everything in good condition before we ship your parcel out.
5) We will process your order ASAP after payment is confirmed.


About us:
1. We are a leading and professional enterprise that specializes in the manufacture of high temperature muffle Furnaces
2.
Our products have a number of technical patents and have passed the ISO9001 quality system certification and CE certificate.
3.
Our products covers 1000/1200/1300/1400/1600/1700ºC muffle furnace, tube furnace, vacuum box furnace, dual(multi) zone tube furnace, industrial furnace, elevator/bottom loading muffle furnace, car-type bottom furnace, etc.
4. After ten years of development, take scientific and strict management system and first-class technology strength, Sante Furnace have provided lots of muffle furnaces for colleges and universities, research institutes, petrochemical plants, petroleum, smelting, casting, machinery manufacturing, military industry, and other industries in China and overseas.
